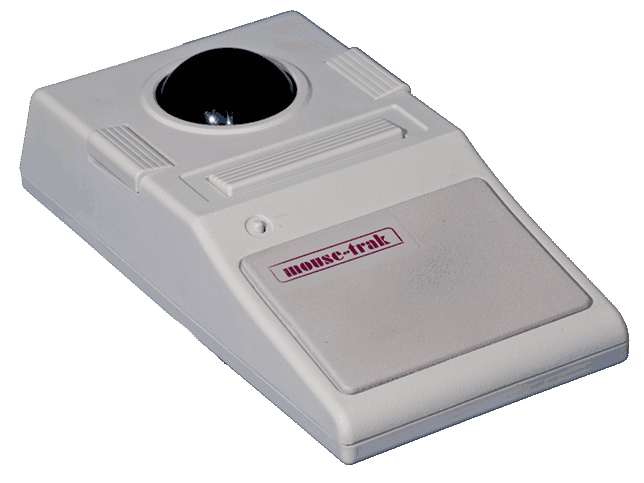

Click to enlargeMouse-Trak™ Professional

The Mouse Trak Professional ergonomic trackball Mouse is 60% less tiring than a wrist and elbow powered mouse.
Integrated hand support reduces the risk of carpal tunnel syndrome.
Middle Button is programmable for either auxillary click, left click-and-drag, or left double-click.
Click, Double-Click, and Click & Drag without complicated driver setup.
Includes a unique "scroll feature"
Extremely light ball movement force reduces user effort.
Fingertip controls reduce wrist and elbow fatigue.
Reliable stainless steel shafts and bearings.
FCC Class B and CE Mark certified.

The Scrolling USB MOUSE-TRAK Professional - BSCRPRXROHS

The Scrolling USB MOUSE-TRAK Prosessional features 4 buttons,USB Interface, an ergonomic design and stainless steel shafts and bearings for long life and trouble free operation. This unit also feartures mouse wheel scrolling capability via a button toggle. This unit requires no drivers or software to operate and is compatible with all Windows OS's, Linux, Unix and MAC OS.

Functional Specifications:
  • Resolution: 192 to 576 pulses per revolution of the ball.
  • Input Switches: Three (3)
  • Connector: 6-Pin Mini-DIN Male, USB or SUN.
  • Pin 2 = NC
  • Pin 3 = Common
  • Pin 4 = +5V
  • Pin 5 = PS/2, or USB, or SUN clock
  • Pin 6 = NC
  • Compatibility: Microsoft PS/2 Mouse Protocol, Logitech PS/2, USB or SUN Mouse Protocol
  • OS Certifications: Microsoft Windows 95, Microsoft Windows NT 4.0
  • Switches: Mechanically limited, break resistant
  • Cable: 96"+-0.5", double shielded, 100% coverage
  • Power Consumption: Idle: 8mA Max: 12mA


Mechanical Specifications:
  • Dimensions: Approximately 4"wide x 8"long
  • Weight: 1.3 lbs.
  • Body Material: ABS, Beige
  • Ball Material: Cast Phenolic Resin
  • Ball Hardness: Rockwell H 85
  • Tracking Force: 1.5 oz. maximum, 0.5 oz. typical (15g)
  • Ball Load: 25 lbs. maximum downward
  • Ball Speed: 500 RPM maximum
  • Hand Pad: Injection-molded vinyl, grey


Environmental Specifications:
  • Operating Temperature: 0 to +50 degrees Celsius
  • Storage Temperature: -20 to +60 degrees Celsius
  • Humidity: 0 to 95% non condensing


System Requirements
  • Windows, Linux, Unix, Mac OS
  • PS/2 and USB


Part #
B-5XUSB-XROHS, USB
B-SCRPR-XROHS, Scroll feature
B-5XXMP-XROHS, PS/2
B-SUNMD-XROHS, SUN 8-pin
B-5XX9P-XROHS, Serial 9-pin



Availability: Usually ships in 2-3 business days

Mouse-Trak™ Professional
ITAC-PRO-B5Regular price: $346.00Ergoguys price: $224.00
